Frame Assembly Phase 1

					Back to Index		Next		Last
82 records found. Page 1 of 9 displayed.

For most of the photos on this page, you can click the image for a larger picture.

The first major task of the project was to assemble the main frames and the frame extensions. In British Railways time, locomotive frames were assembled using cold rivets. This skill is very hard to find these days so the project decided to used fitted bolts. These bolts are a tight fit in the bolt hole and, we believe, offer a better securing solution to rivets.

October 2024

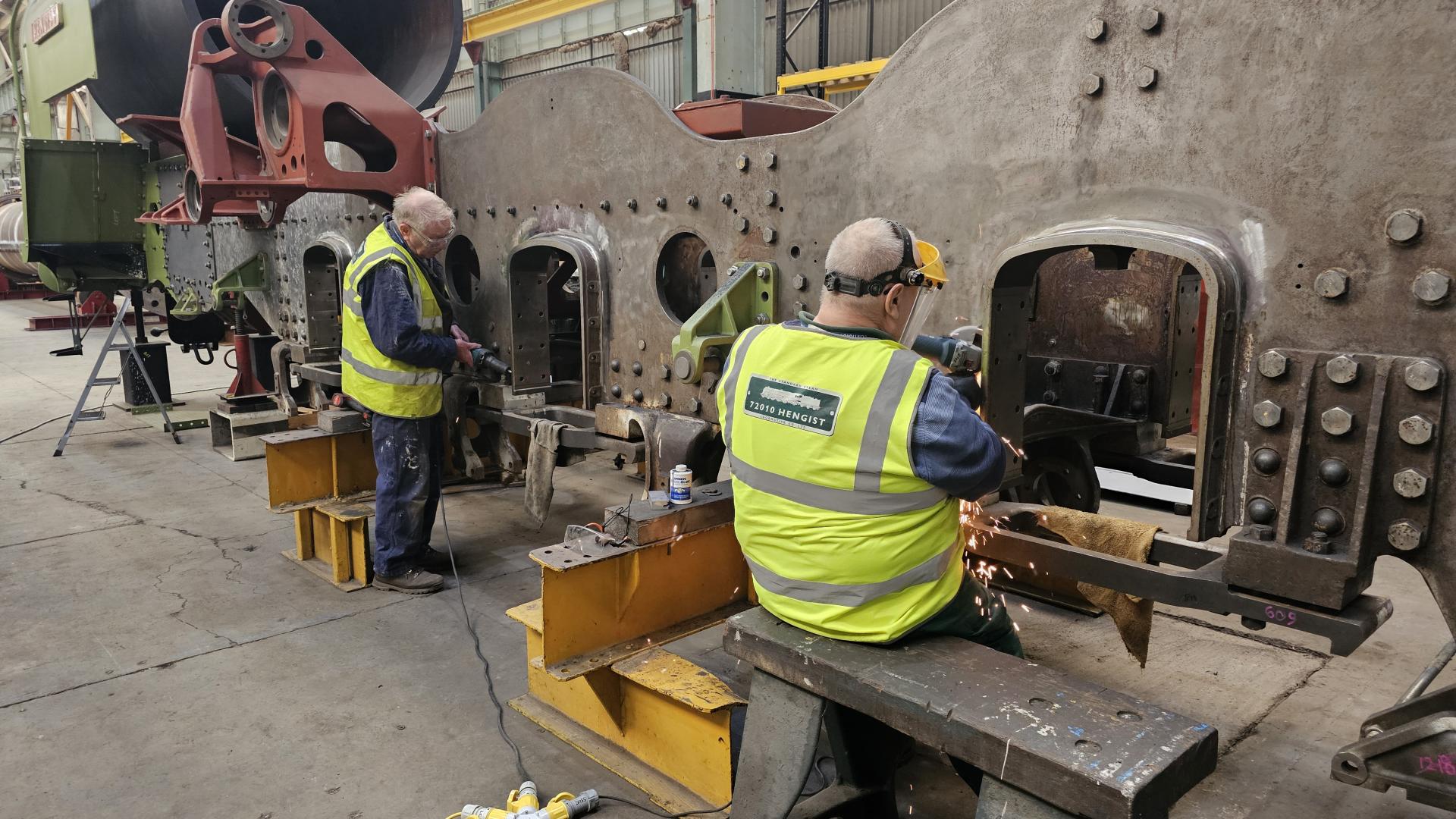

A lot of work has gone on during the Autumn in ensuring that the hornguide welds are ground so that the transition from hornguide to frame is smooth. Here Jim and Bob are at work.

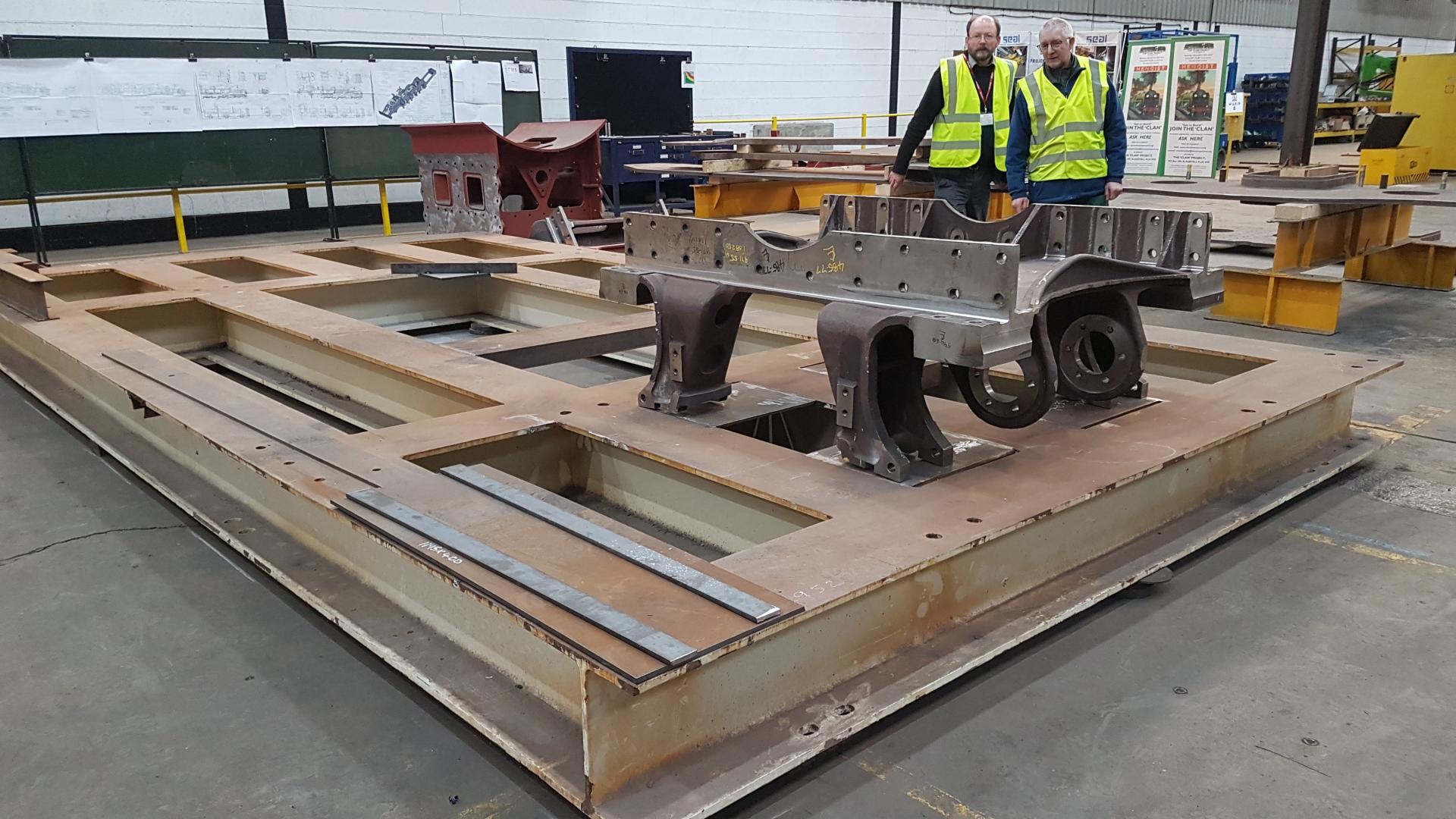

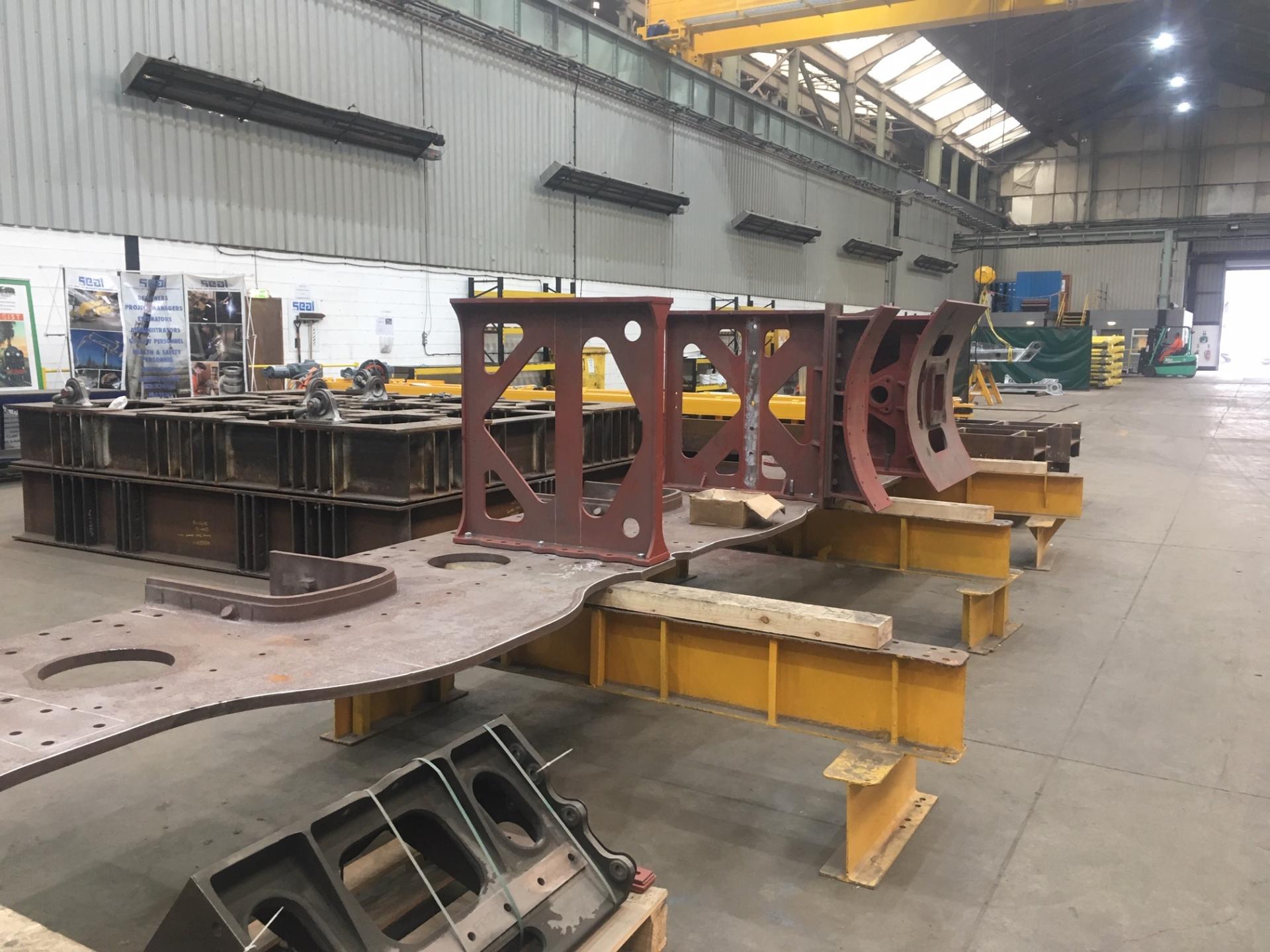

	January 2019 After manufacturing all of the required components, the job started with CTL Seal setting up a base frame which the components could be assembled on. Here Geoff and Keith inspect the first step.

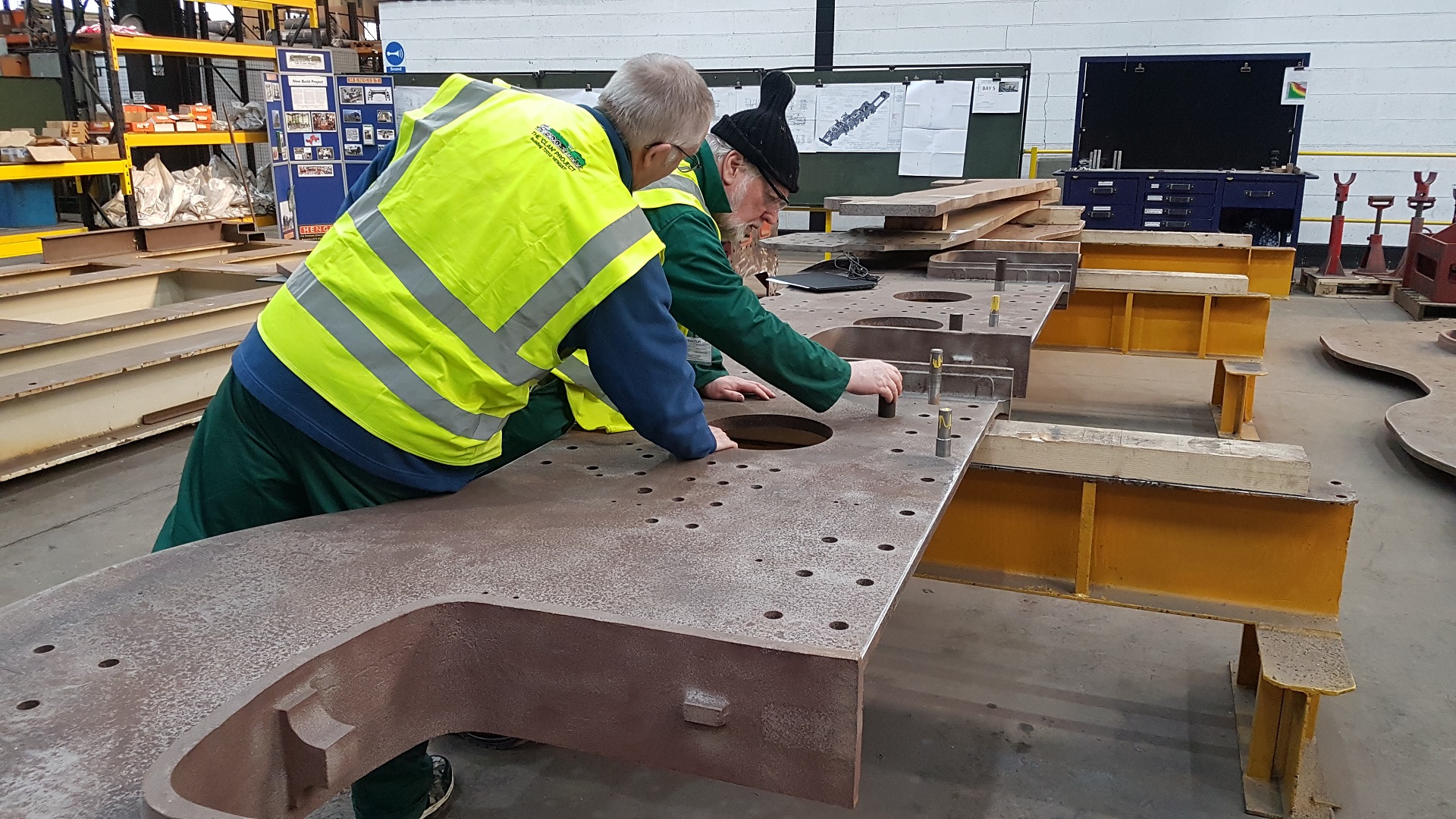

	January 2019 Keith and Alan inspect the dowels that will be used to locate the frames onto the stretchers.

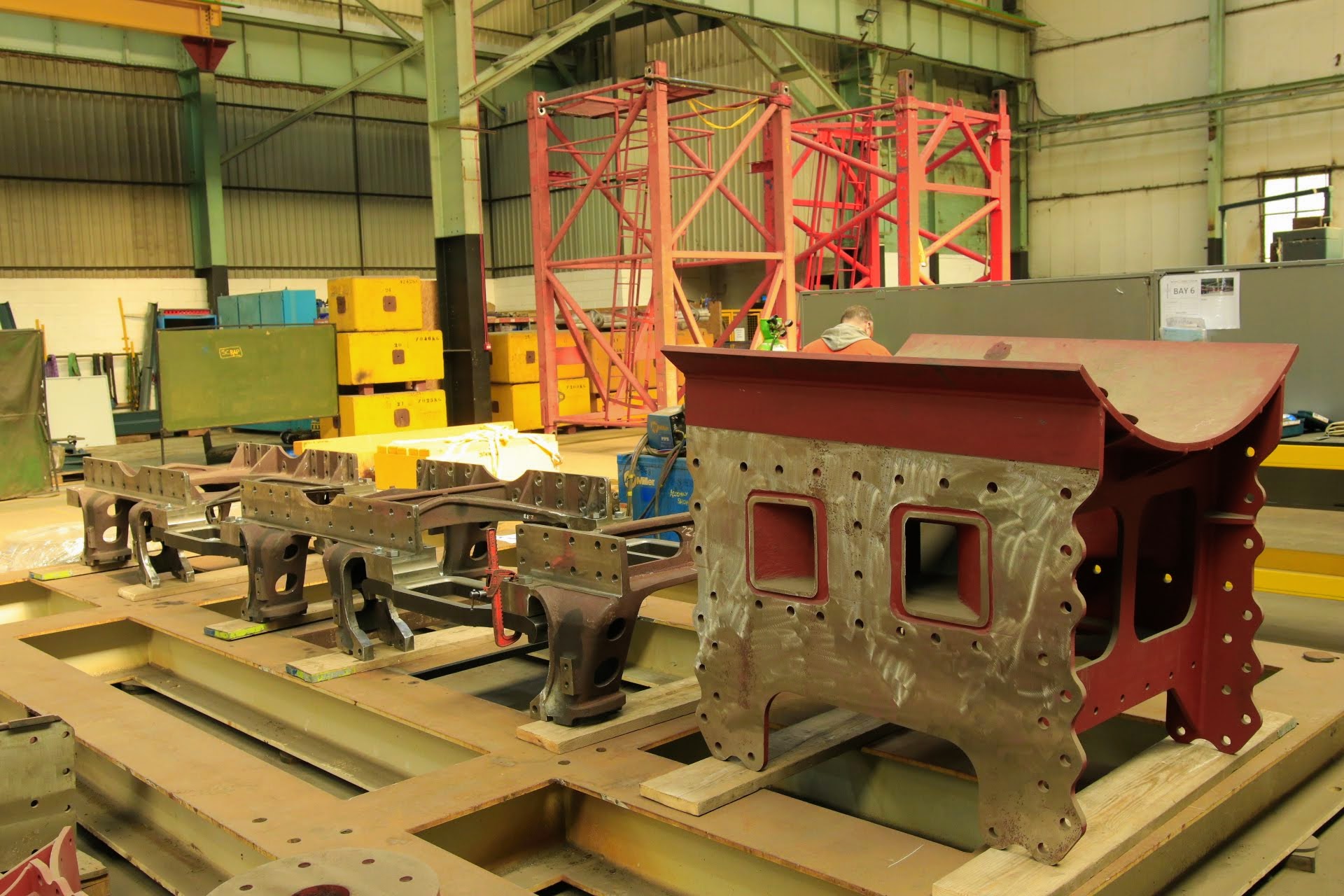

	April 2019 With machining of the combined frame stretchers complete, we could line up the smokebox saddle and the frame stretchers on the bed frame.

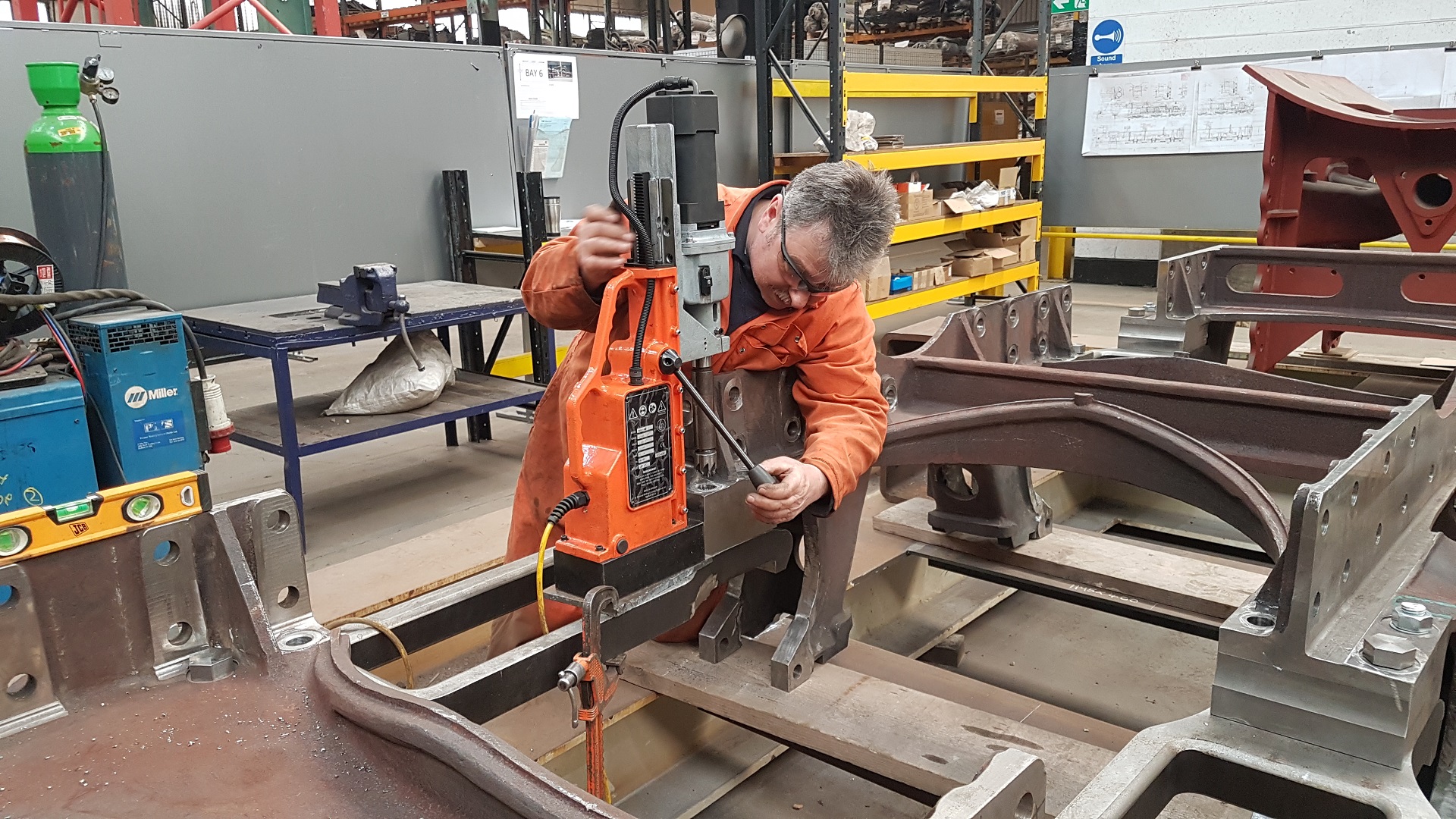

	April 2019 We used the frame keeps (placed upside down for now) to ensure that the stretchers were the correct distance apart. Peter from CTL Seal is machining a small countersink on the frame keep pads.

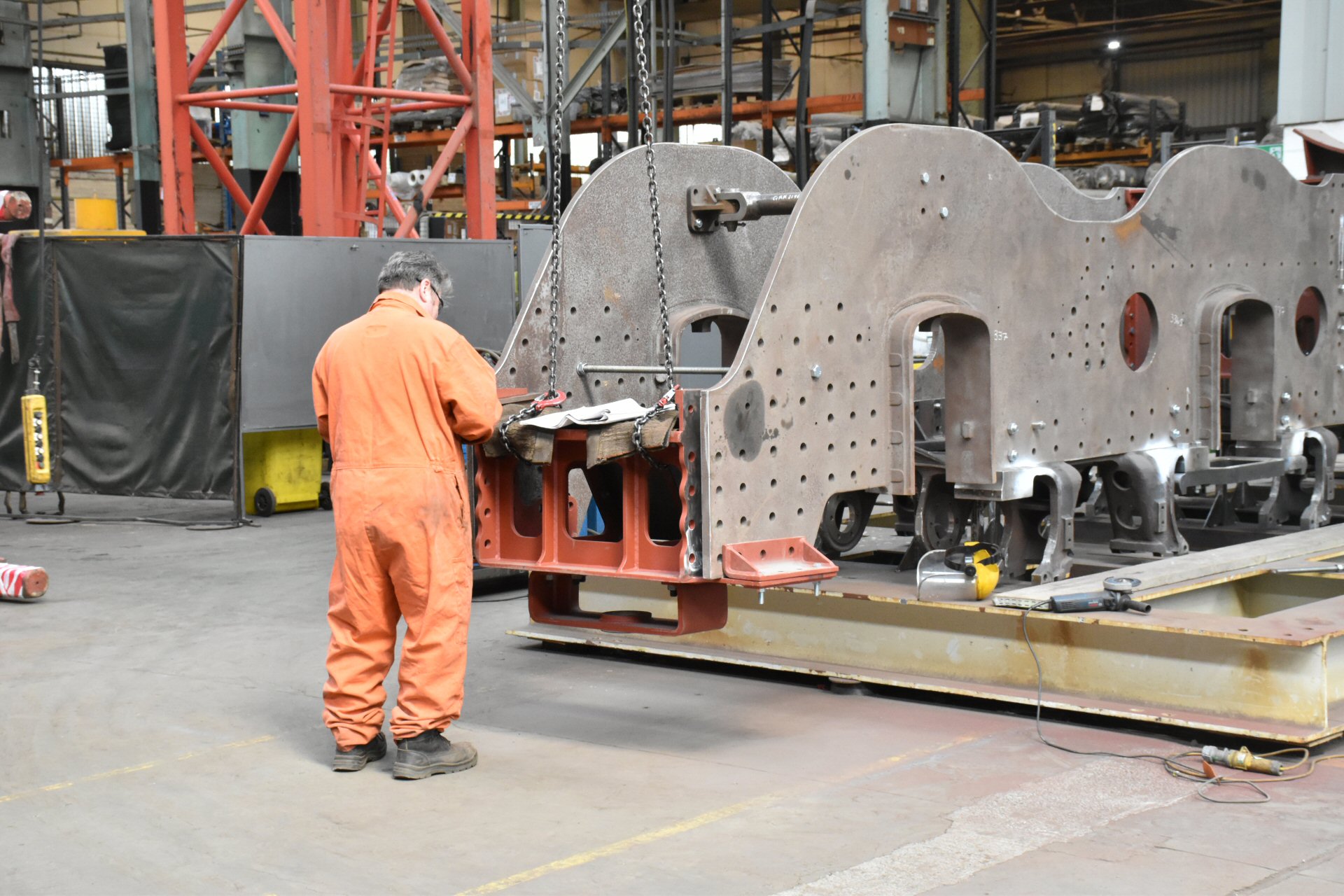

	May 2019 With one of the frame plates flat on its side, the vertical stretchers were fastened to the frame plate using temporary bolts. The other frame plate was then lifted up and placed on top of other vertical stretchers.

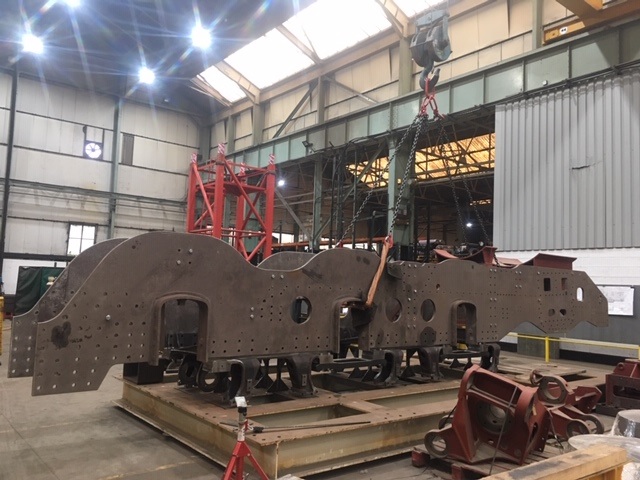

	May 2019 The frame assembly was then lowered onto the combined frame stretchers.

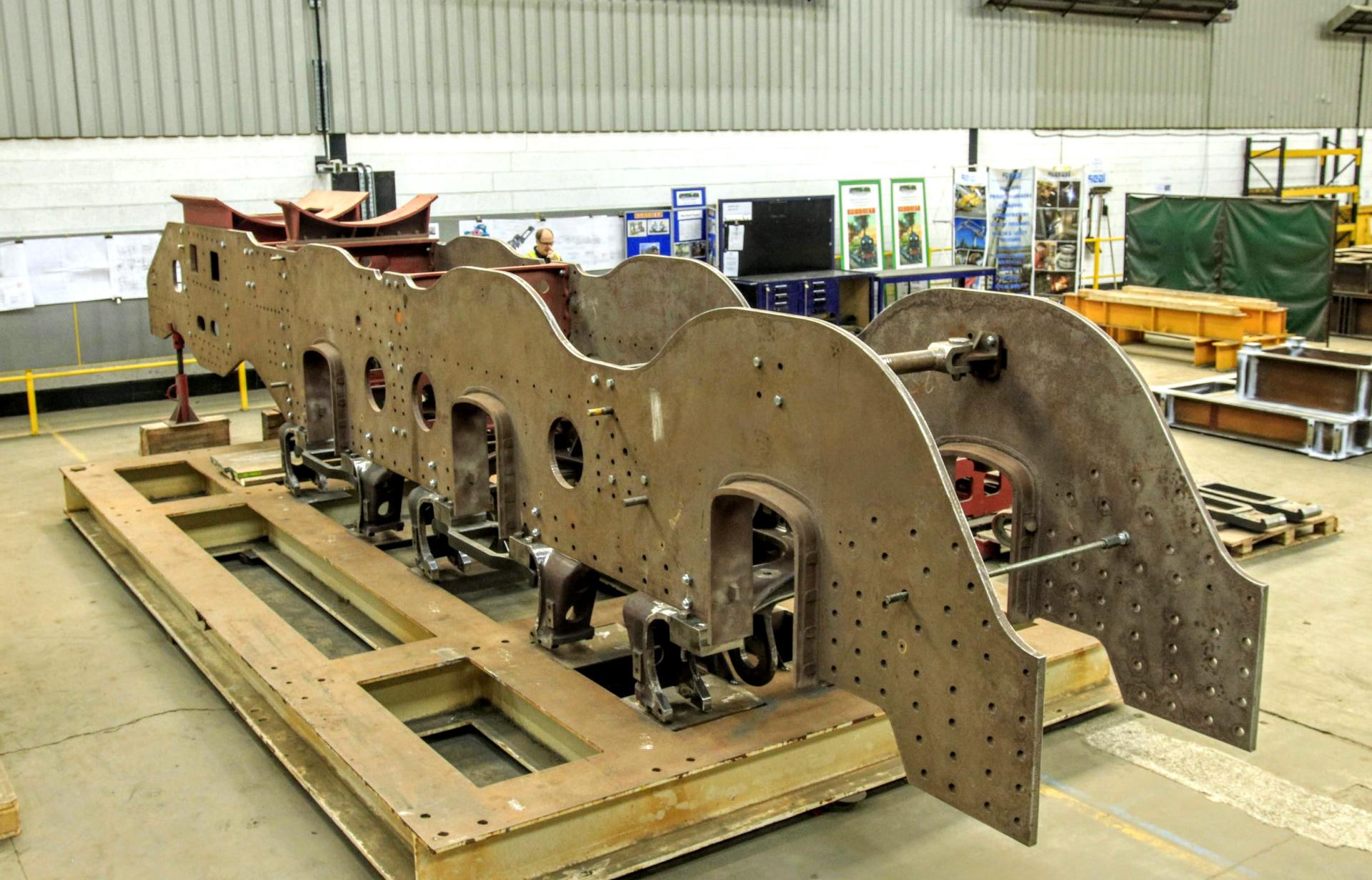

	May 2019 At this stage everything is just loose bolted. The check now is to ensure that the frame plates are bedded down to the combined frame stretchers.

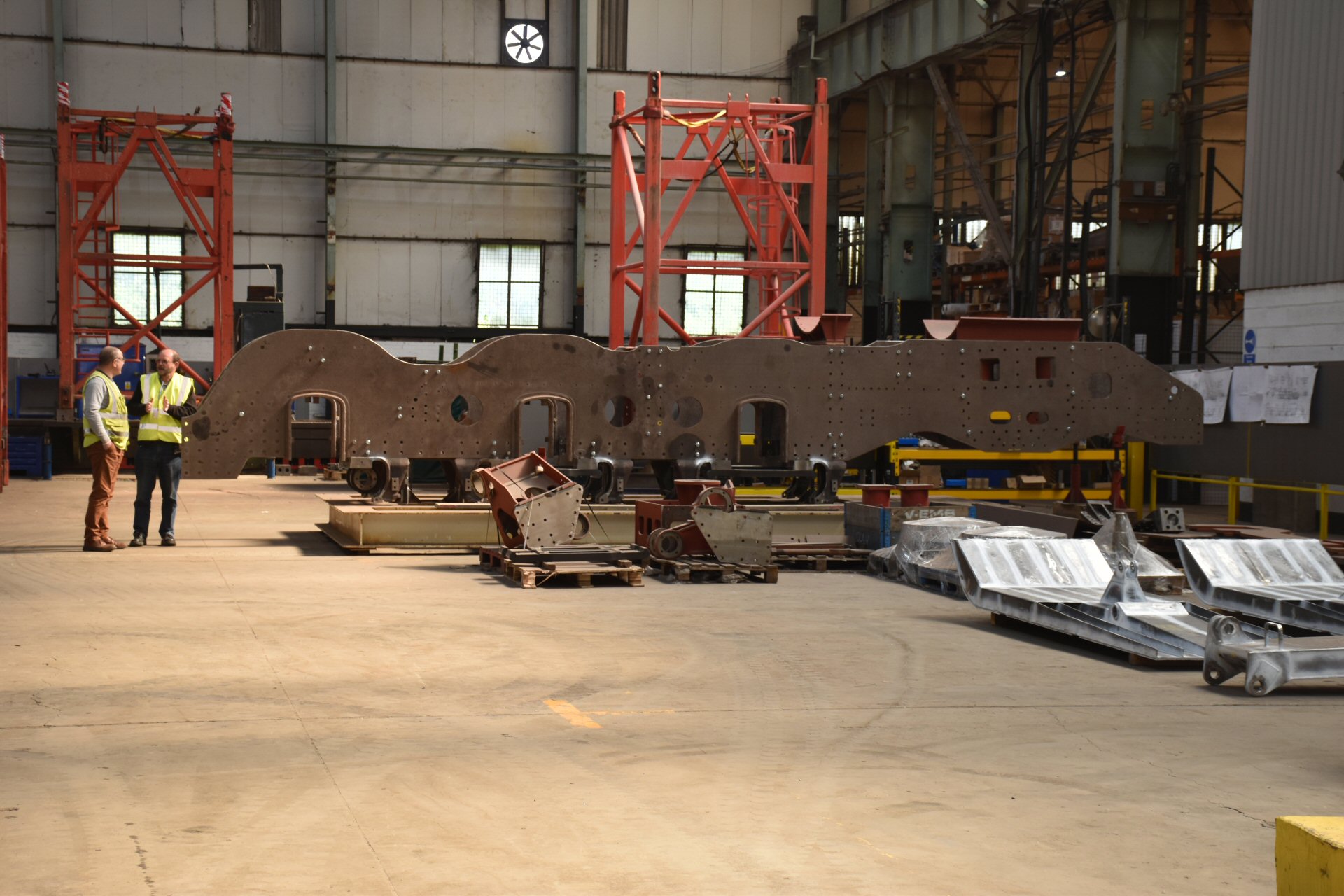

	May 2019 The assembly now starts to show its scale. Tom Wade from CTL Seal and Geoff discuss the project. The frames, together with the frame extensions still to be fitted will be just over 42 foot long or 12.8 metres.

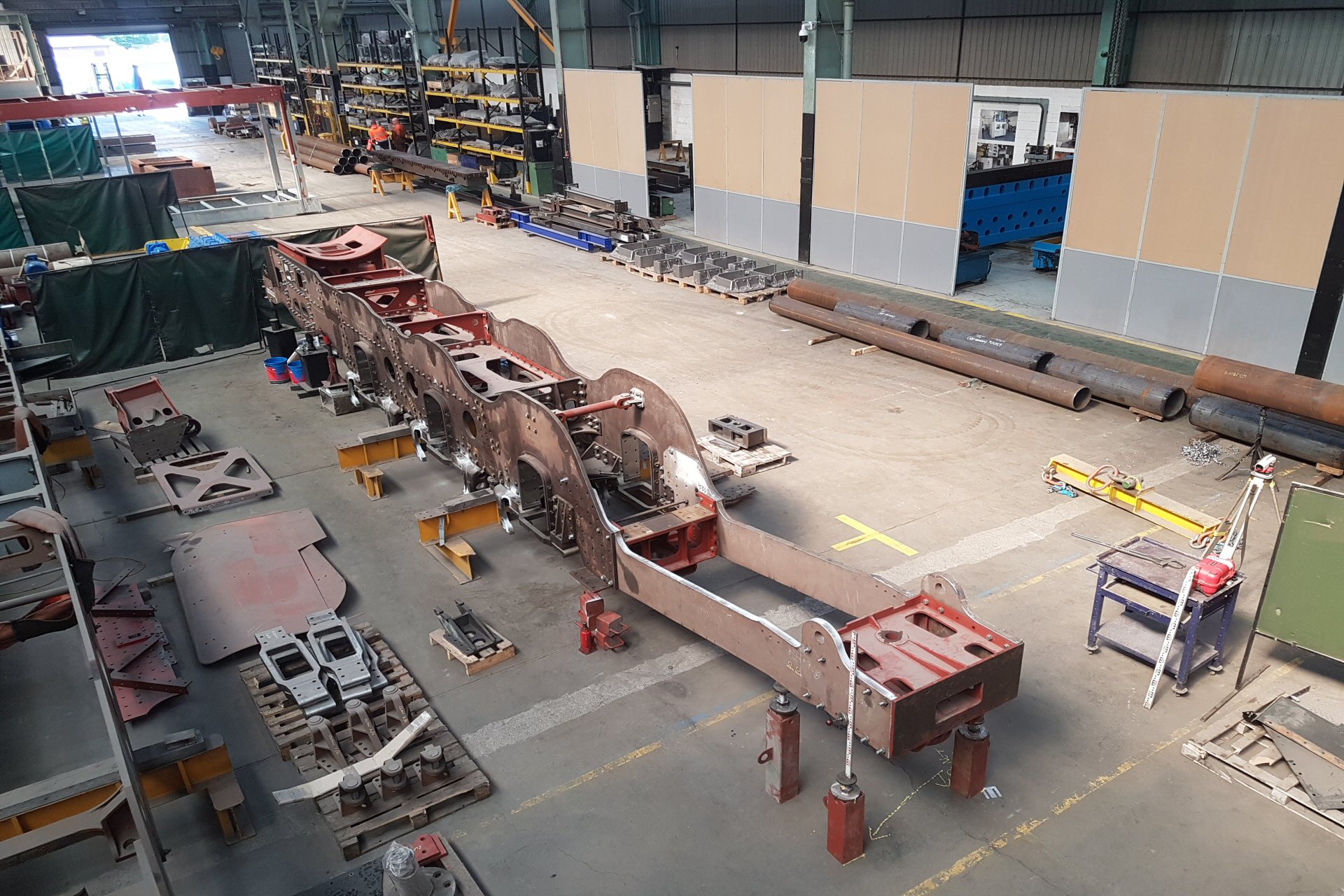

	July 2019 Pete installs the front firebox support and pony truck pivot stretcher. The frame extensions will be fitted later in this area.

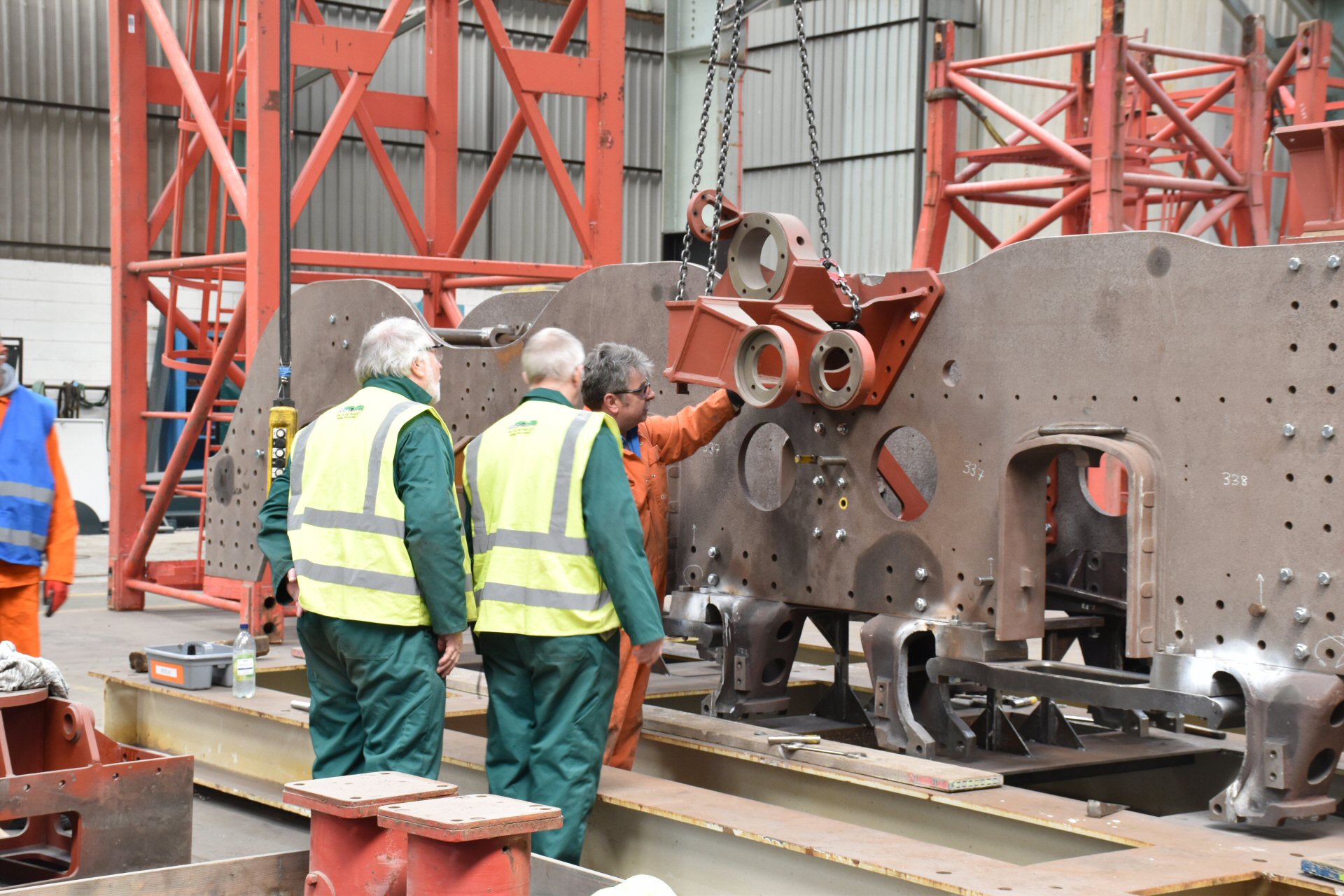

	July 2019 The right hand motion bracket is installed. This will only be finally fastened in place once the cylinders have been fitted.
